HSW0501S

Карточка оборудования
Наименование:HSW0501S
Производитель:Ce-Link
Наличие:в наличии
Рекомендованная
розничная цена:
2082руб. | оптовые цены
Ещё в Коммутаторы/Переключатели HDMI:

Ce-Link HSW0201, Ce-Link HSW0301S

Описание HSW0501S

5 входов, 1 выход, ПДУ, с усилителем,           + 25м, поддержка HDMI1.3b и до 1080р, Video - 2.5Gbps

Introduction

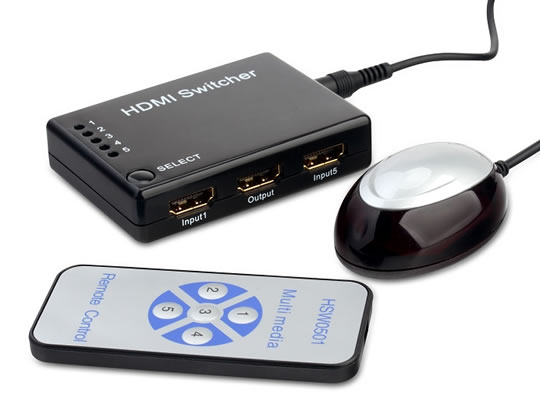

This is a kind of high performance mini HDMI Amplifier Switcher. This kind HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically. In addition, it is standardly equipped with IR extender receiver : safe and convenient.

This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc. The output sends the high definition audio/video signals to a high definition display.



Features

This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a superior manner. Among those features you will find:

Support 12-bit Deep Color, full 1080p

Multifunctional on switching : intelligent or mechanical

Supports with HDMI1.3b.

High performance up to 2.5Gbps

Supports 25Meters HDMI Cable on both ends of the Switcher

Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved

IR extender receiver (included)

IR remote(included)

Power supply



SPECIFICATIONS

Signal Inputs/Output



Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI1.3b+HDCP1.0/1.1

Video format supported



VGA

640x480,800x600,1024x768,1920x1200

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O



HDMI Compliance

HDMI 1.3b

Operating Frequency



Frequency

Up to250MHz

Vertical Frequency Range

60Hz

Video Amplifier Bandwidth

2.5Gpbs/250MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(H-W-D)



Weight(Net)



Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 to +70

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



External Power Supply

5V  DC@2A

Regulatory Approvals



Unit

UL,CE,FCC

Power Supply

UL,CE,FCC

Accessories Adapter



AC Power Adapter

US standard, UK standard and so on

IR extender receiver



IR remote



User Manual

English Version
