HSP0108E

Карточка оборудования
Наименование:HSP0108E
Производитель:Ce-Link
Наличие:отсутствует
Рекомендованная
розничная цена:
14500руб. | оптовые цены
Ещё в Делители/Сплитеры HDMI:

Ce-Link HSP0102b, Ce-Link HSP0104b, Ce-Link HSP0108b, Ce-Link HSP0104bs

Описание HSP0108E



This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
1、Easy to Use: Install in seconds, no need of setting.
2、Supports the Video Amplifier Bandwidth up to 1.65Gpbs/165MHz
3、One pair as a full functional module,
4、One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
5、Follow the standard of IEEE-568B.
6、Transmission distance can be up to 50 meters for 1080p using CAT-6 Cable.
7、FCC CE Certified

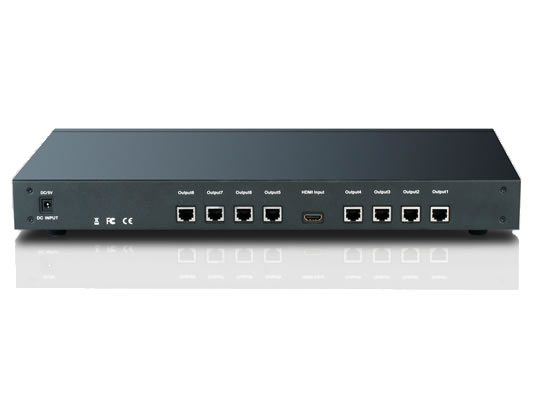

This HDMI Splitter is an HDMI splitter with eight RJ45 outputs. It distributes the input of the HDMI signal into the eight identical outputs simultaneously. Eight HDMI Extender Receivers by Cat5 x1 receive the distributed signal from the splitter and transmit to displays individually.
Each receiver works with the splitter as a full functional module. Only by the most inexpensive CAT-5e/6 cable the full functional module extend the HDTV display up to 50 meters for 1080p.
This HDMI Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

SPECIFICATIONS

Signal Inputs/Output



Input Video Signal

0.5 -1.0 volts p-p

Output Video

HDMI 1.2a

Video format supported



DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Transmission distance



CAT-6 cable

50M for1080p

Operating Frequency



Video Amplifier Bandwidth

1.65Gpbs/165MHz

Vertical Frequency Range

50/60Hz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size of HDMI 8Ports Splitter Amplifier (L-W-H)

441×202×45mm

Weight of HDMI 8Ports Splitter Amplifier (Net)

2218g

Size of Receiver (L-W-H)

100×65×25.5MM

Weight of Receiver (Net)

385G

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 to +70

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



Power Supply for HDMI 8Ports Splitter Amplifier

5V DC@4A

Power Supply for Receiver

5V DC@2A

Regulatory Approvals



Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter



AC Power Adapter

US standard, UK standard and so on

User Manual

English Version

 Note: Specifications are subject to change without notice.
