С 301 Multi

Карточка оборудования
Наименование:С 301 Multi
Производитель:Ce-Link
Наличие:отсутствует
Рекомендованная
розничная цена:
0руб. | оптовые цены
Ещё в Преобразователи форматов/Конвертеры:

Ce-Link HCО 0101, Ce-Link HCS 0101, Ce-Link HCV 0101, Ce-Link VCH 0101, Ce-Link YCH 0101

Описание С 301 Multi

Мульти-Конвертер, входы: HDMI1.3+DVI+YPbPr+LR+SPDiF, выходы: HDMI1.3 + SPDiF, 1080р, LPCM, AC3, DTS7.1, DSD

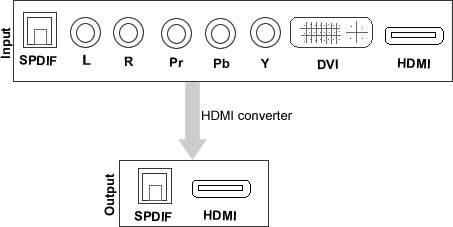

Вход: HDMI+DVI+YPbPr+Composite Audio+SPDIF Audio
Выход: HDMI+SPDIF Audio

Introduce:
This product is an unique device that allows older analog devices to be integrated seamlessly into the modern home theater.  It encodes several different kinds of the video signals (HDMI +DVI+ YPbPr ) onto the HDMI signals for the full HDMI video and audio effect. The inputs of the product are equipped with many popular audio format inputs (Composite Audio + SPDIF) . With the IR remote, you can easily switching between different kinds of video formats and audio formats to the most up-to-date HDMI format.
The most convenience is here.
The full digital video and audio experience are here.

Function:
1.Output signal format: HDMI1.3 protocol compliant.
2.Up support Capture 1080p Analog YPbPr Input, bandwidth 330M, VF 50/60/75HZ.
3.HDCP1.2 protocol compliant.
4.Deep color 36bit support.
5.SPDIF HIFI audio output from HDMI1.3 signal: LPCM/Dolby-AC3/DTS7.1/DSD.
6.Support interfuse SPDIF, convert DVI to HDMI.
7.Support interfuse RL or SPDIF, convert YPbPr/YCbCr to HDMI.
8.Manual or Remote, Switch input source signal from HDMI to DVI to YPbPr.
9.LED indication: input source signal selection. When some source is selected, LED relative to the source is red. When output is working, LED relative to the sink is red.
10.DC 5V power supply.

SPECIFICATIONS

Signal Inputs/Output



Output signal up support

HDMI1.3 protocol compliant

Maximum Single Link Range

1920X1200, 1080P

HDCP

1.1 protocol compliant

YPbPr input

1080p capture, 50/60/75HZ

Support



Support HDMI resolution

1080P/1080i/720P/576P/576i/480P/480i

Support audio format

LPCM,Dolby-AC3,DTS7.1,DSD

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Warranty



Limited Warranty

1 Year Parts and Labor

Mechanical



Size(D-W-H)

257mm x114mm x26mm

Weight(Net)

0.832 Kgs

Operating Temperature

0 to +70

Operating Humidity

10% to 85 % RH (no condensation)

Power Requirement



External Power Supply

5V DC@2A

Regulatory Approvals



Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC
